Finite State Machine (FSM) Implementation

Overview

A Finite State Machine (FSM) is a computational model used to design computer programs and digital logic circuits. It consists of a finite number of states, transitions between those states, and actions. FSMs are particularly important in embedded systems for managing system behavior, user interfaces, and protocol implementations.

Key Concepts

States

• Idle State: Initial state when no card is inserted
• Card Inserted State: State after a card is inserted
• PIN Entered State: State after PIN is entered
• Option Selected State: State after user selects an option
• Amount Entered State: State after amount is entered

Events

• Card Insert Event: Triggered when a card is inserted
• PIN Enter Event: Triggered when PIN is entered
• Option Selection Event: Triggered when user selects an option
• Amount Enter Event: Triggered when amount is entered
• Amount Dispatch Event: Triggered when amount is dispatched

Transitions

The FSM transitions between states based on events. Each transition is handled by a specific event handler function.

Implementation

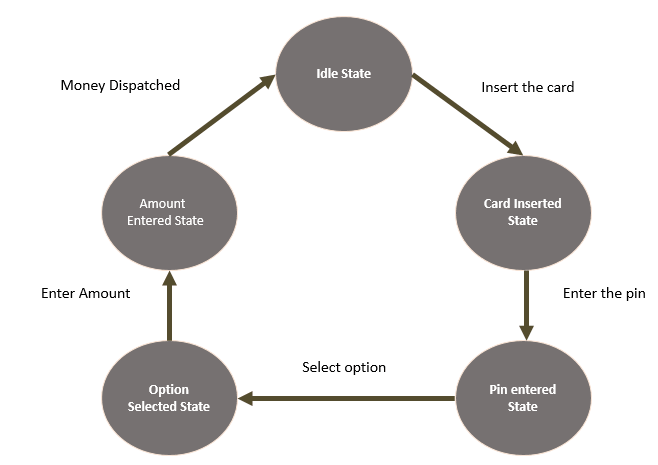

FSM Diagram

Usage

make
./stateMachine

Code Implementation

Header File (state_machine.h)

#ifndef STATE_MACHINE_H
#define STATE_MACHINE_H

#include <stdio.h>
#include <stdlib.h>

// System states enumeration
typedef enum {
    IDLE_STATE,
    CARD_INSERTED_STATE,
    PIN_ENTERED_STATE,
    OPTION_SELECTED_STATE,
    AMOUNT_ENTERED_STATE,
    MAX_STATES
} eSystemState;

// System events enumeration
typedef enum {
    CARD_INSERT_EVENT,
    PIN_ENTER_EVENT,
    OPTION_SELECTION_EVENT,
    AMOUNT_ENTER_EVENT,
    AMOUNT_DISPATCH_EVENT,
    MAX_EVENTS
} eSystemEvent;

// Function prototypes
eSystemState amountDispatchHandler(void);
eSystemState enterAmountHandler(void);
eSystemState optionSelectionHandler(void);
eSystemState enterPinHandler(void);
eSystemState insertCardHandler(void);

// State machine functions
void stateMachineInit(void);
eSystemState processEvent(eSystemState currentState, eSystemEvent event);
const char* getStateName(eSystemState state);
const char* getEventName(eSystemEvent event);

#endif // STATE_MACHINE_H

Implementation File (state_machine.c)

#include "state_machine.h"

// Event handler functions
eSystemState amountDispatchHandler(void) {
    printf("Amount dispatched. Returning to idle state.\n");
    return IDLE_STATE;
}

eSystemState enterAmountHandler(void) {
    printf("Amount entered successfully.\n");
    return AMOUNT_ENTERED_STATE;
}

eSystemState optionSelectionHandler(void) {
    printf("Option selected successfully.\n");
    return OPTION_SELECTED_STATE;
}

eSystemState enterPinHandler(void) {
    printf("PIN entered successfully.\n");
    return PIN_ENTERED_STATE;
}

eSystemState insertCardHandler(void) {
    printf("Card inserted successfully.\n");
    return CARD_INSERTED_STATE;
}

// State machine processing function
eSystemState processEvent(eSystemState currentState, eSystemEvent event) {
    switch(currentState) {
        case IDLE_STATE:
            if(event == CARD_INSERT_EVENT) {
                return insertCardHandler();
            }
            break;

        case CARD_INSERTED_STATE:
            if(event == PIN_ENTER_EVENT) {
                return enterPinHandler();
            }
            break;

        case PIN_ENTERED_STATE:
            if(event == OPTION_SELECTION_EVENT) {
                return optionSelectionHandler();
            }
            break;

        case OPTION_SELECTED_STATE:
            if(event == AMOUNT_ENTER_EVENT) {
                return enterAmountHandler();
            }
            break;

        case AMOUNT_ENTERED_STATE:
            if(event == AMOUNT_DISPATCH_EVENT) {
                return amountDispatchHandler();
            }
            break;

        default:
            printf("Invalid state: %d\n", currentState);
            break;
    }

    printf("Invalid event %s for state %s\n", getEventName(event), getStateName(currentState));
    return currentState;
}

// Utility functions
const char* getStateName(eSystemState state) {
    static const char* stateNames[] = {
        "IDLE_STATE",
        "CARD_INSERTED_STATE",
        "PIN_ENTERED_STATE",
        "OPTION_SELECTED_STATE",
        "AMOUNT_ENTERED_STATE"
    };
    return (state < MAX_STATES) ? stateNames[state] : "UNKNOWN_STATE";
}

const char* getEventName(eSystemEvent event) {
    static const char* eventNames[] = {
        "CARD_INSERT_EVENT",
        "PIN_ENTER_EVENT",
        "OPTION_SELECTION_EVENT",
        "AMOUNT_ENTER_EVENT",
        "AMOUNT_DISPATCH_EVENT"
    };
    return (event < MAX_EVENTS) ? eventNames[event] : "UNKNOWN_EVENT";
}

Main Application (main.c)

#include "state_machine.h"

int main(int argc, char *argv[]) {
    eSystemState currentState = IDLE_STATE;
    eSystemEvent newEvent;
    char input;

    printf("=== ATM State Machine Demo ===\n");
    printf("Available events:\n");
    printf("0 = Card Insert Event\n");
    printf("1 = PIN Enter Event\n");
    printf("2 = Option Selection Event\n");
    printf("3 = Amount Enter Event\n");
    printf("4 = Amount Dispatch Event\n");
    printf("q = Quit\n\n");

    while(1) {
        printf("Current State: %s\n", getStateName(currentState));
        printf("Enter event (0-4, q to quit): ");

        input = getchar();
        getchar(); // Consume newline

        if(input == 'q' || input == 'Q') {
            printf("Exiting...\n");
            break;
        }

        newEvent = (eSystemEvent)atoi(&input);

        if(newEvent >= 0 && newEvent < MAX_EVENTS) {
            eSystemState nextState = processEvent(currentState, newEvent);
            if(nextState != currentState) {
                printf("State transition: %s -> %s\n",
                       getStateName(currentState), getStateName(nextState));
                currentState = nextState;
            }
        } else {
            printf("Invalid event. Please enter 0-4 or q to quit.\n");
        }

        printf("\n");
    }

    return 0;
}

Makefile

CC = gcc
CFLAGS = -Wall -Wextra -std=c99
TARGET = stateMachine
SOURCES = main.c state_machine.c
HEADERS = state_machine.h

$(TARGET): $(SOURCES) $(HEADERS)
	$(CC) $(CFLAGS) -o $(TARGET) $(SOURCES)

clean:
	rm -f $(TARGET)

.PHONY: clean

Common Interview Questions

1. What is a Finite State Machine?
   • A computational model with a finite number of states and transitions
   • Used for modeling behavior in embedded systems
   • Consists of states, events, and transitions
2. What are the advantages of using FSMs?
   • Clear and predictable behavior
   • Easy to debug and maintain
   • Modular design
   • Suitable for real-time systems
3. How would you implement an FSM in C?
   • Use enums for states and events
   • Implement state transition table or switch statements
   • Create event handler functions
   • Use a main loop to process events
4. What are the different types of FSMs?
   • Moore Machine: Output depends only on current state
   • Mealy Machine: Output depends on current state and input
5. How would you handle invalid state transitions?
   • Add error handling in transition logic
   • Log invalid transitions
   • Return to a safe state or error state

Advanced Topics

State Machine Patterns

1. Hierarchical State Machines: States can contain sub-states
2. Nested State Machines: States can be state machines themselves
3. Parallel State Machines: Multiple state machines running concurrently

Implementation Considerations

• Memory efficiency: Use lookup tables for large state machines
• Performance: Optimize transition logic for real-time systems
• Maintainability: Use clear naming conventions and documentation
• Testing: Create comprehensive test cases for all transitions
